Polarising & Ore Microscopes

PETROLOGICAL/POLARISING PROJECTOR (Halogen) (CAT. NO. B 20145)
It is unique and versatile projection equipment used for projection of geological slide\s on the screen or wall from 3 to 3.5 meters up to 200x or more magnification depending on distance. It is equipped with graduated circular and rotatable stage, polariser, analyzer, projection screen, focusing knob and 12v, 100 watts bright halogen lamp for brilliant projection. It has wide application in geology, petrology, mineralogy, crystallography and chemical micrography. Supplied with a spare halogen lamp and dust cover in card board box.

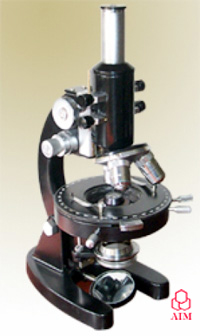

Petrological Polarising Microscope


LABORATORY ORE MICROSCOPE (CAT. NO. B 20150)
Monocular inclinable body having coarse and graduated fine motion knobs, bright-field vertical illuminator, circular centering rotatable stage with calibration, abbe condenser with polarizing mount graduated to 360º, analyzer provided in a slide along with Bertrand lens, mica & gypsum plates. Supplied in wooden cabinet.

Optics : objectives : 05x, 010x and 045x
Eye pieces : WF 10x, 5x with cross & H 10x micro .


Comparison Microscopes

FORENSIC COMPARISON MICROSCOPE (CAT. NO. B 20195)

Recommended for comparative study of bullets, cartridge cases etc. in criminal investigation , where the uses of this microscope are very many. It is equipped with a special vice type mechanical stage to accommodate objects of any diameter, like bullets, coins, industrial/engineering materials etc. special replaceable attachment has also been provided to hold materials like notes, cartoons, stamps, finger prints etc. supplied in a beautiful wooden cabinet.

Optics: Ach objective : 5x, 10x, and 45x
Huy eyepieces : WF 10x, H 15x, H 10x, micro & H5x cross.



POLARISING COMPARISON MICROSCOPE( Mineralogical Microscope) (CAT. NO. B 20200)
This microscope has indispensable application for compar4ative studies in petrography, crystallography, Mineralogy, Geology, Chemical Microscopy etc. in industrial, geological as well as university laboratories it permits to Orthoscopically or Conoscopically examine and identify the str4ucture and characteristics of materials with highly resolved distinctive images of various magnification. Circular rotatable stage, 130 mm cabinet. Strain free objectives : PO 5x, 10x and PO 4x

Eyepieces: WF 10x, H 15X, H10x Micro & H5x cross

Polarising Facilities : Polariser & Analyser, Betrand lens, ¼ wave length Retarding plate, Gypsum & Mica plate.



METALLURGICAL COMPARISON MICROSCOPE (CAT. NO. B 20205)
This microscope has been designed for quality control, to compare the standard sample with the one in production. Its major applications are in industries pertaining to Dies, Tools, high performance of fullest versatility for visual observation, sub-stage lights are provided for opaque and transparent specimen. Supplied with graduated detachable mechanical stage, in a beautiful storing cabinet.

Optics : Objectives : M5x, M10x & M45x
Eye pieces : WF10x, H15x, H10x Micro & H5x cross.





MONOCULAR METALLURGICAL MICROSCOPE (CAT. NO. B 20225)
Rigid and stable body fitted with monocular observation tube, inclined at 45º, bright field, incident light through Epi-illuminator with centering provision, field and aderture diaphragm and slot for dropping filters. It is having precise Quadruple revolving nosepiece with positive click stop. co-axial mechanical stage for x-y movement of specimens up to thickness 65mm. Built-in base transformer. Halogen Bulb 6V 20W controlled by variable intensity control knob. Day light blue and green filter in metal mount, a spare bulb and vinyl cover in a sturdy plywood storing cabinet..

Optics: Ach objective : M5x, M10x & M45x(SL)
Huy eyepieces : 5x, 10x AND 15x
Magnifications : 25x to 675x.
BINOCULAR METALLURGICAL MICROSCOPE (CAT. NO. B 20230)
Rigid and stable body fitted with binocular Head inclined, inclined at 45º, bright field, incident light through Epi-illuminator with centering provision, field and aderture diaphragm and slot for dropping filters. It is having precise Quadruple revolving nosepiece with positive click stop. co-axial mechanical stage for x-y movement of specimens up to thickness 65mm. Built-in base transformer. Halogen Bulb 6V 20W controlled by variable intensity control knob. Day light blue and green filter in metal mount, a spare bulb and vinyl cover in a sturdy plywood storing cabinet..

Optics: Ach objective : M5x, M10x & M45x(SL)
Huy eyepieces : 5x, 10x AND 15x
Magnifications : 25x to 675x.






NOTE:- The information and specification provided are subject to change without notice.
